60 GHz + 6-DOF IMU
Arduino Radar Shield v1.0
An Arduino UNO Q-compatible shield with 60 GHz CW Doppler radar and 6-DOF IMU.
Technical specifications
Download datasheet
Specifications
Summary of the main specifications. Refer to the full datasheet for detailed, certified values and application notes.
| Radar chip name | BGT60LTR11AIP |
|---|---|
| Radars chip manufacturer | Infineon Technologies AG |
| Operating frequency | 60 GHz (61 – 61.5 GHz) |
| Antenna configuration | 1 TX / 1 RX — 1 virtual channel |
| Field of view | ±60° azimuth, ±20° elevation |
| Maximum range | Up to 10 m |
| IMU chip name | LSM6DSOX |
| IMU chip manufacturer | ST Microelectronics |
| Interface | CAN FD, up to 5 Mbit/s |
| Power supply | 8 – 32 V DC, automotive-grade input |
| Power consumption | < 1.5 W typical |
| Dimensions | 30 × 20 × 7 mm |
| Weight | 10 g |
| Operating temperature | -40 °C to +85 °C |
| Output data | raw ADC samples |
Gallery

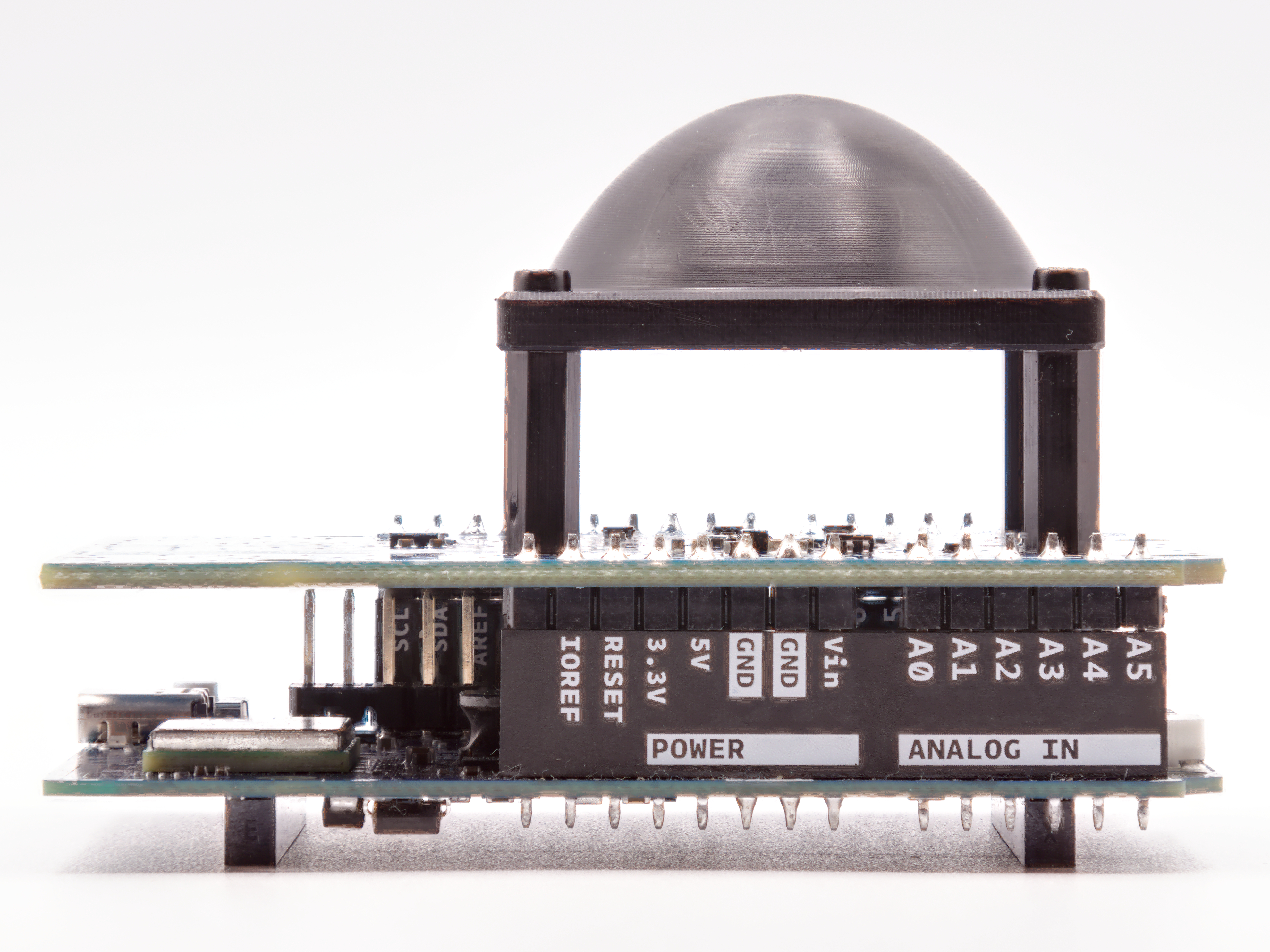

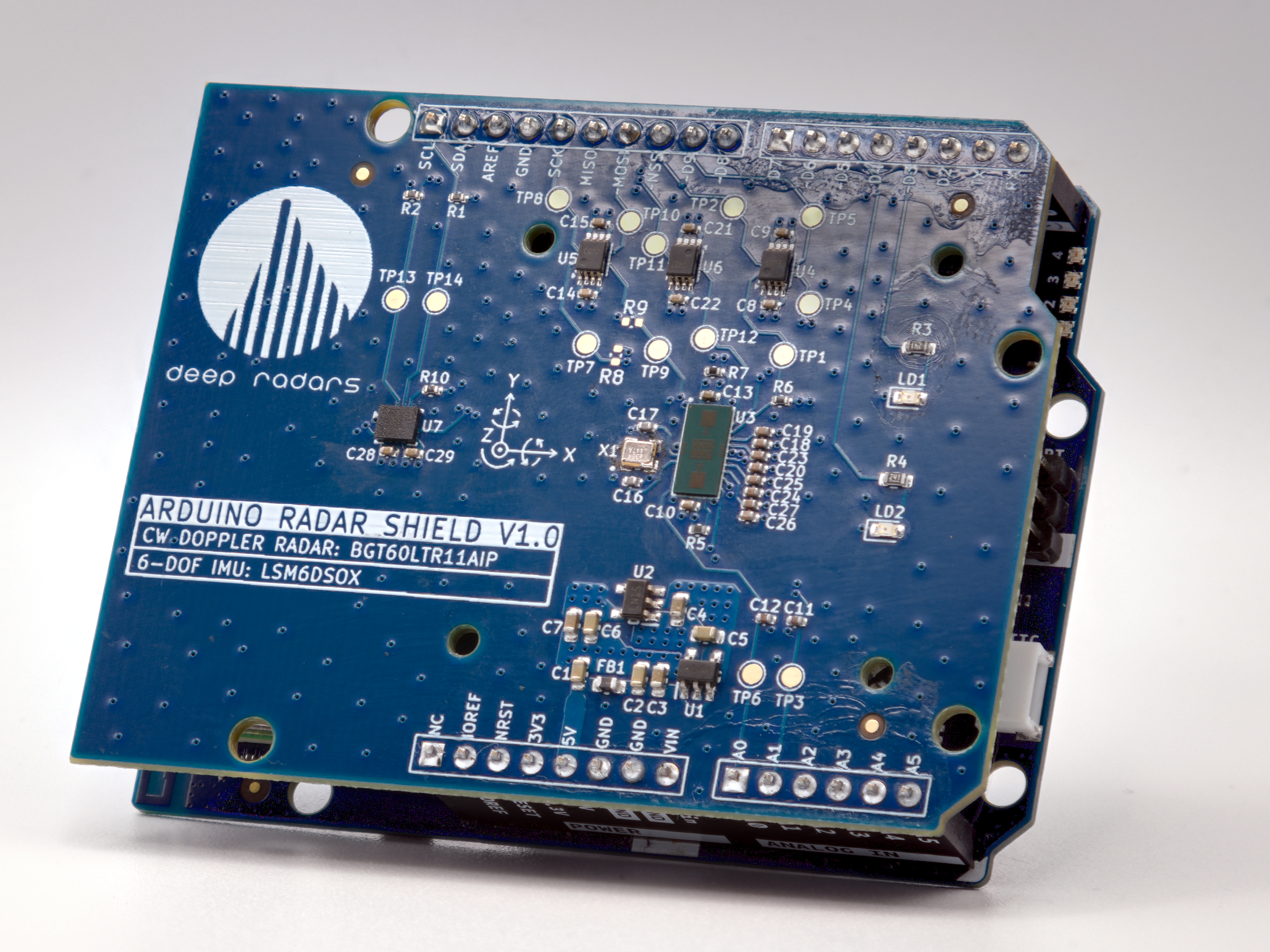

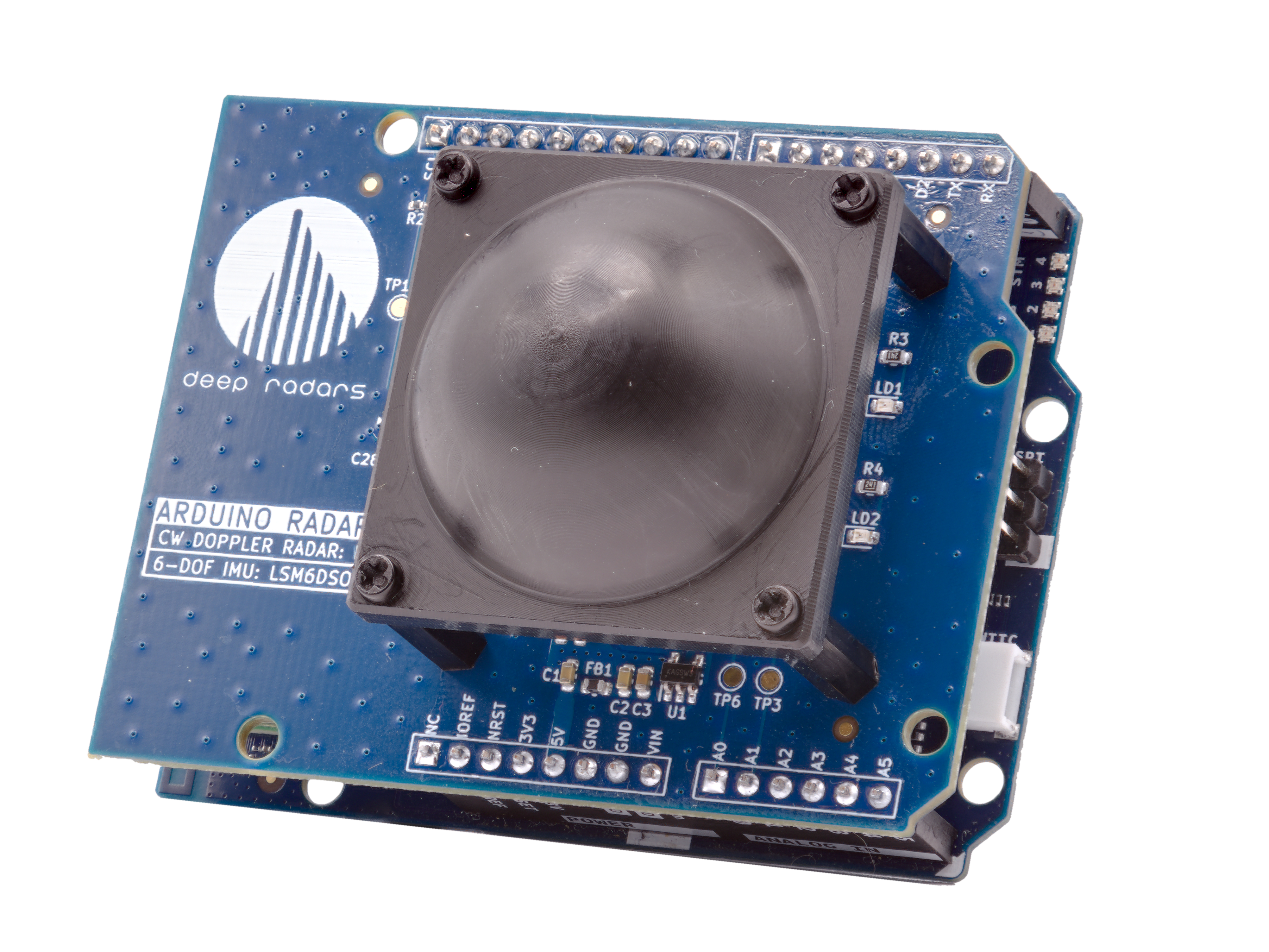

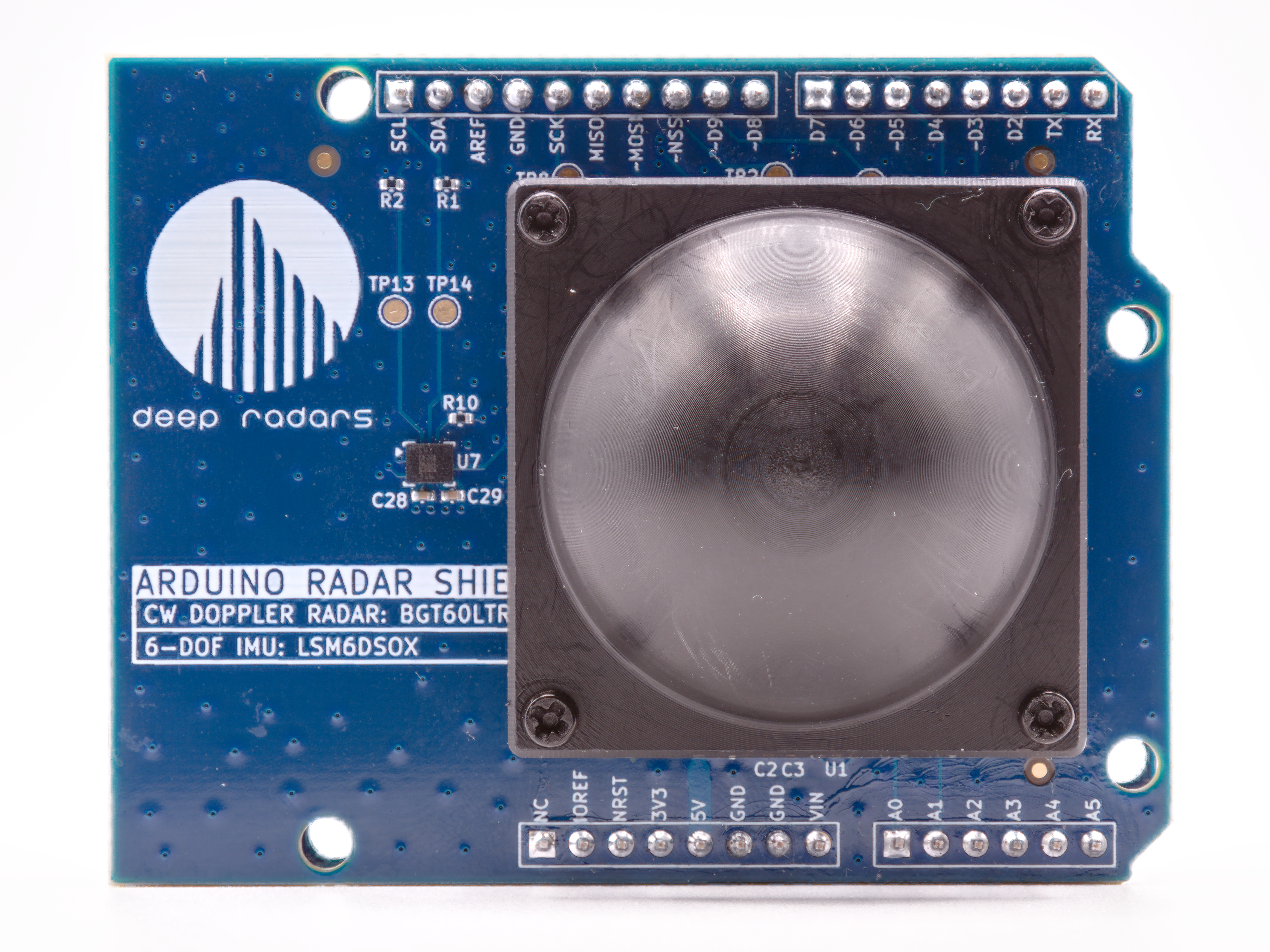

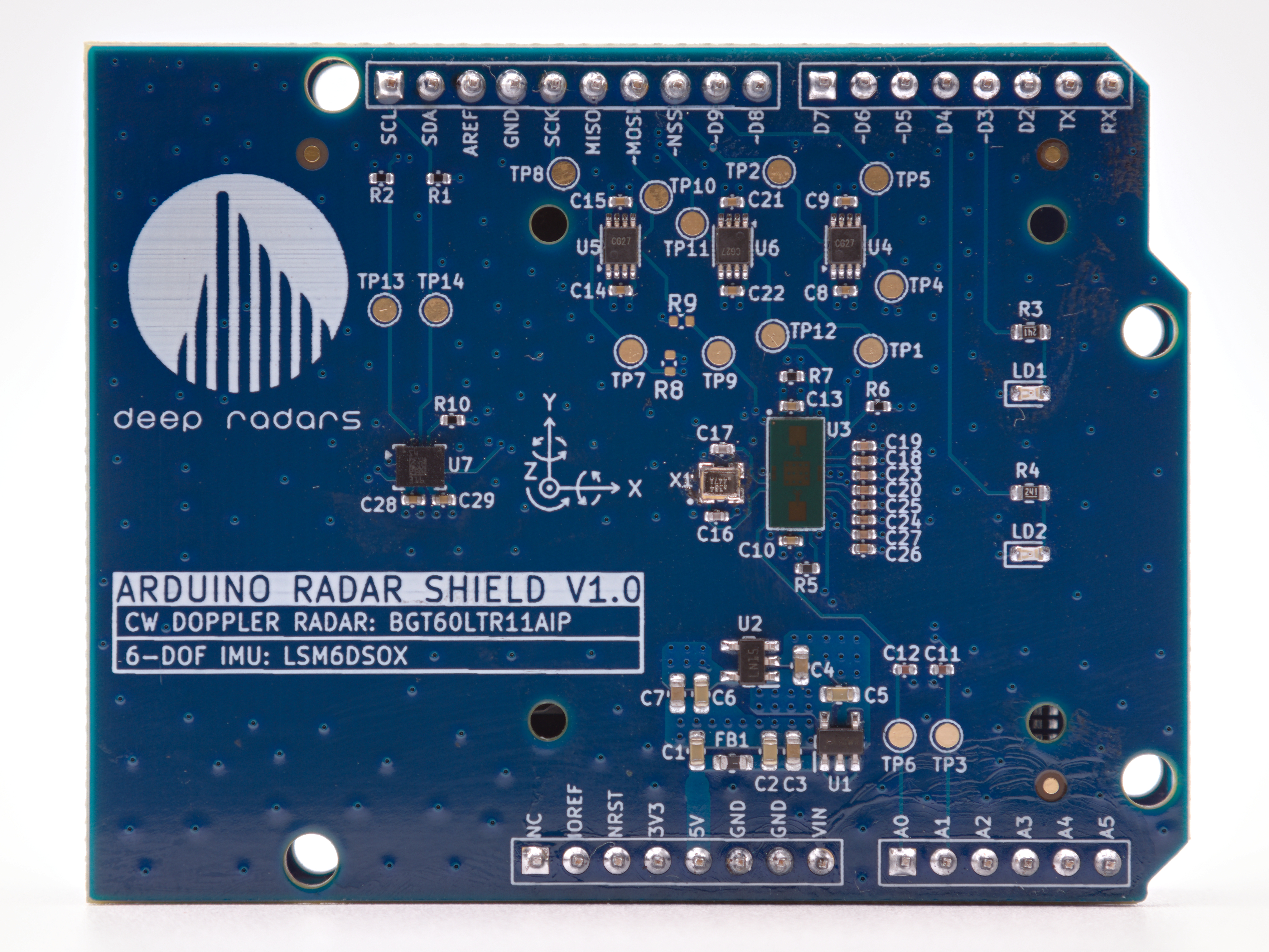

Arduino Radar Shield V1.0 in detail
