60 GHz · CAN FD
Vulture
A miniaturized 60 GHz radar sensor with CAN FD interface, designed for automotive-grade integration and real-time in-vehicle communication. Rugged and compact, it wires directly into your vehicle network — no protocol conversion required.
Technical specifications
Request the datasheet
Specifications
Summary of the main specifications. Refer to the full datasheet for detailed, certified values and application notes.
| Chip name | BGT60TR13C |
|---|---|
| Chip manufacturer | Infineon Technologies AG |
| Operating frequency | 60 GHz (58 – 63.5 GHz) |
| Antenna configuration | 1 TX / 3 RX — 3 virtual channels |
| Field of view | ±60° azimuth, ±20° elevation |
| Maximum range | Up to 10 m |
| Interface | CAN FD, up to 5 Mbit/s |
| Power supply | 8 – 32 V DC, automotive-grade input |
| Power consumption | < 1.5 W typical |
| Dimensions | 30 × 20 × 7 mm |
| Weight | 10 g |
| Operating temperature | -40 °C to +85 °C |
| Output data | Pre-processed target list over CAN FD (raw ADC available on request) |
Gallery

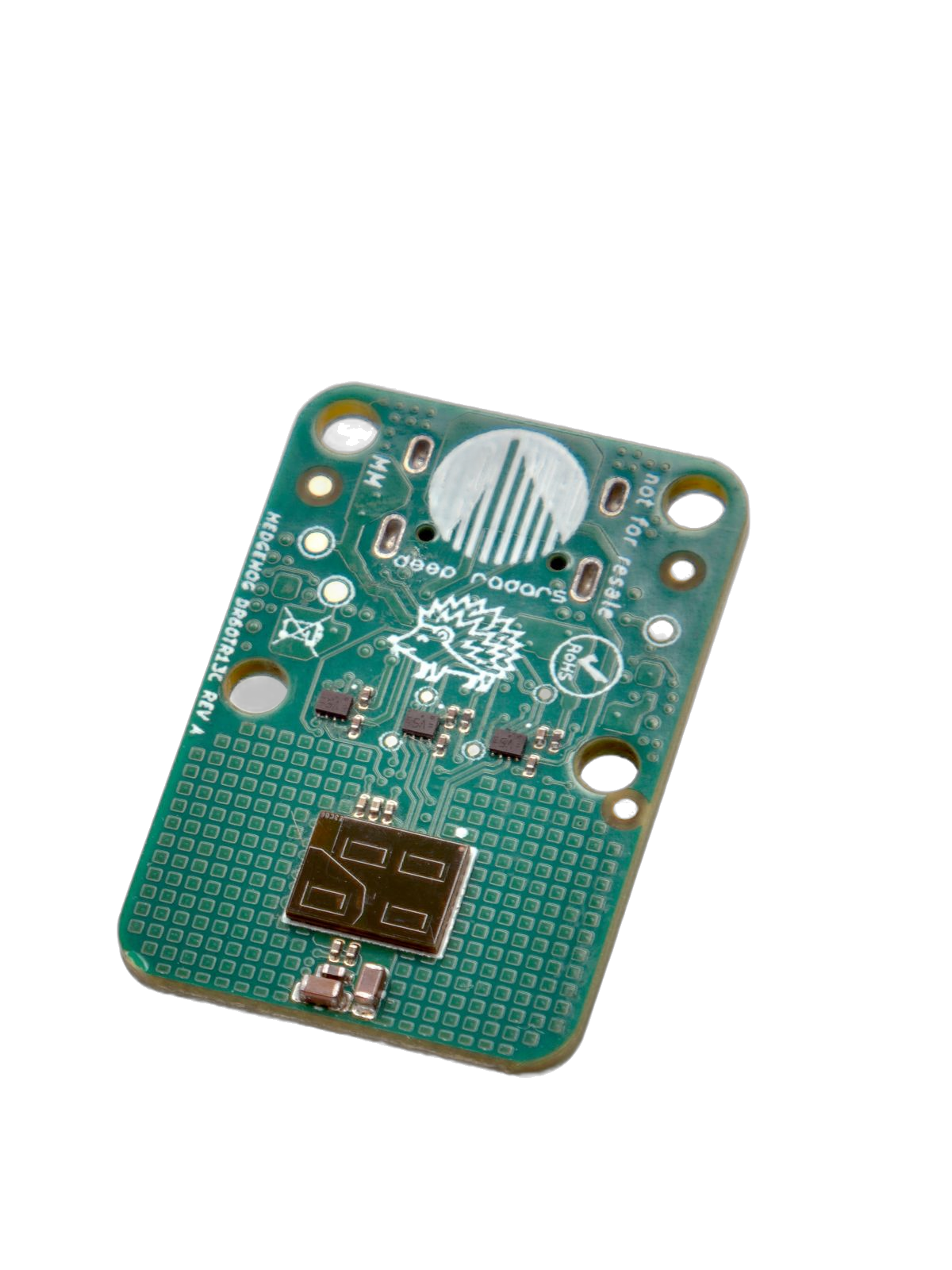

Vulture in detail
A closer look at the board — click any photo to enlarge.
Questions about Vulture?
Ask us about availability, integration, evaluation kits or a customised version for your application.
