24 GHz · On-board processing
Sparrow 9020
A 24 GHz radar module with on-board processing, delivering ready-to-use detection data straight out of the sensor. The on-board MCU handles detection and tracking internally, so your host system receives clean target data with no external computation required.
Technical specifications
Download datasheet
Specifications
Summary of the main specifications. Refer to the full datasheet for detailed, certified values and application notes.
| Chip name | BGT24MTR11 |
|---|---|
| Chip manufacturer | Infineon Technologies AG |
| Operating frequency | 24 GHz (24.0 – 24.25 GHz ISM band) |
| Antenna configuration | 1 TX / 1 RX |
| Radar type | CW Doppler |
| Field of view | 20° x 90° |
| Maximum range | Up to 15 m |
| On-board processing | STM32G070K8T6 running on-board detection & tracking |
| Interface | Digital (0 - 3.3V) |
| Power supply | 5 - 24 V DC |
| Power consumption | < 5 W typical |
| Dimensions | 40 × 40 × 20 mm |
| Weight | 20 g |
| Operating temperature | -20 °C to +70 °C |
| Output data | Presence, direction |
Gallery

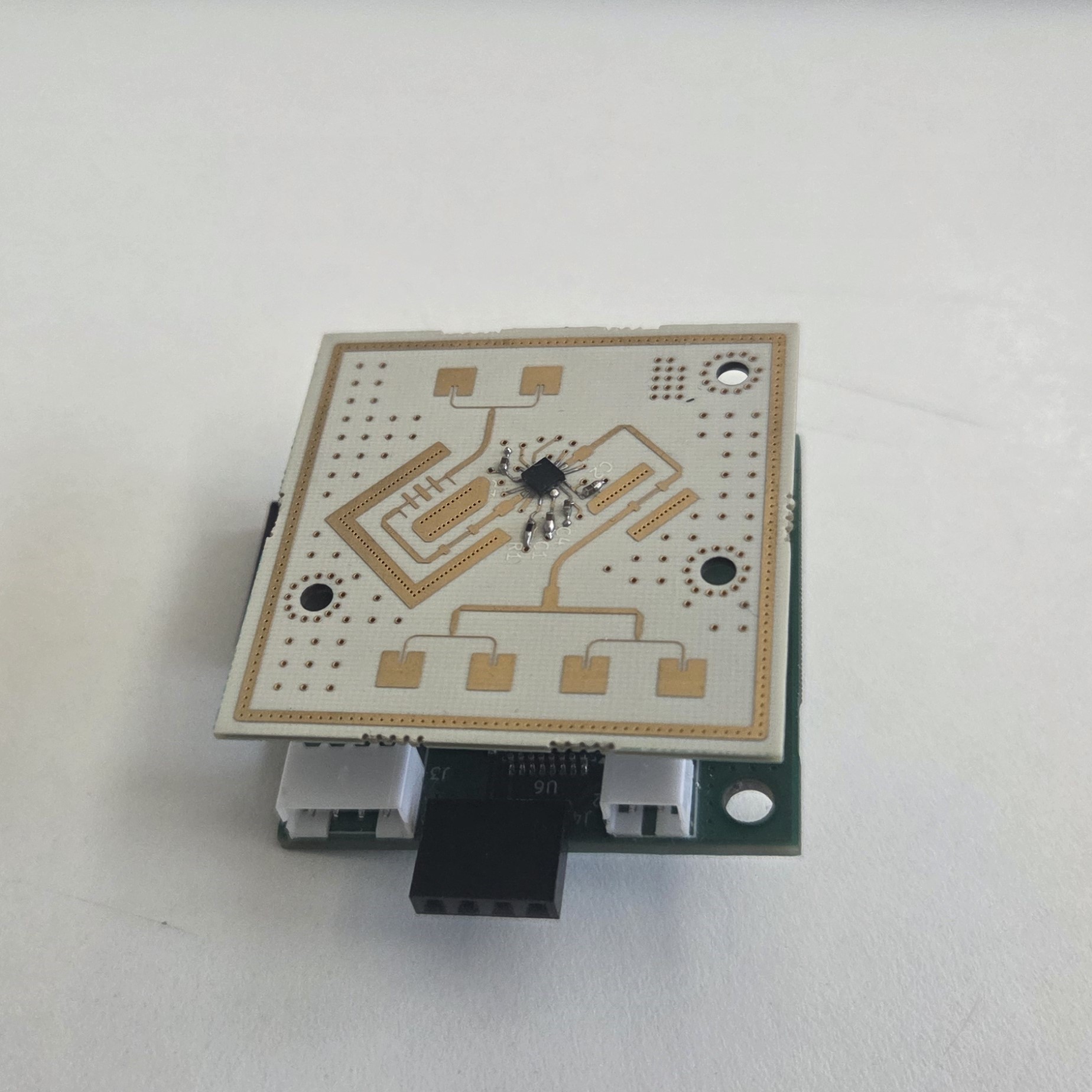

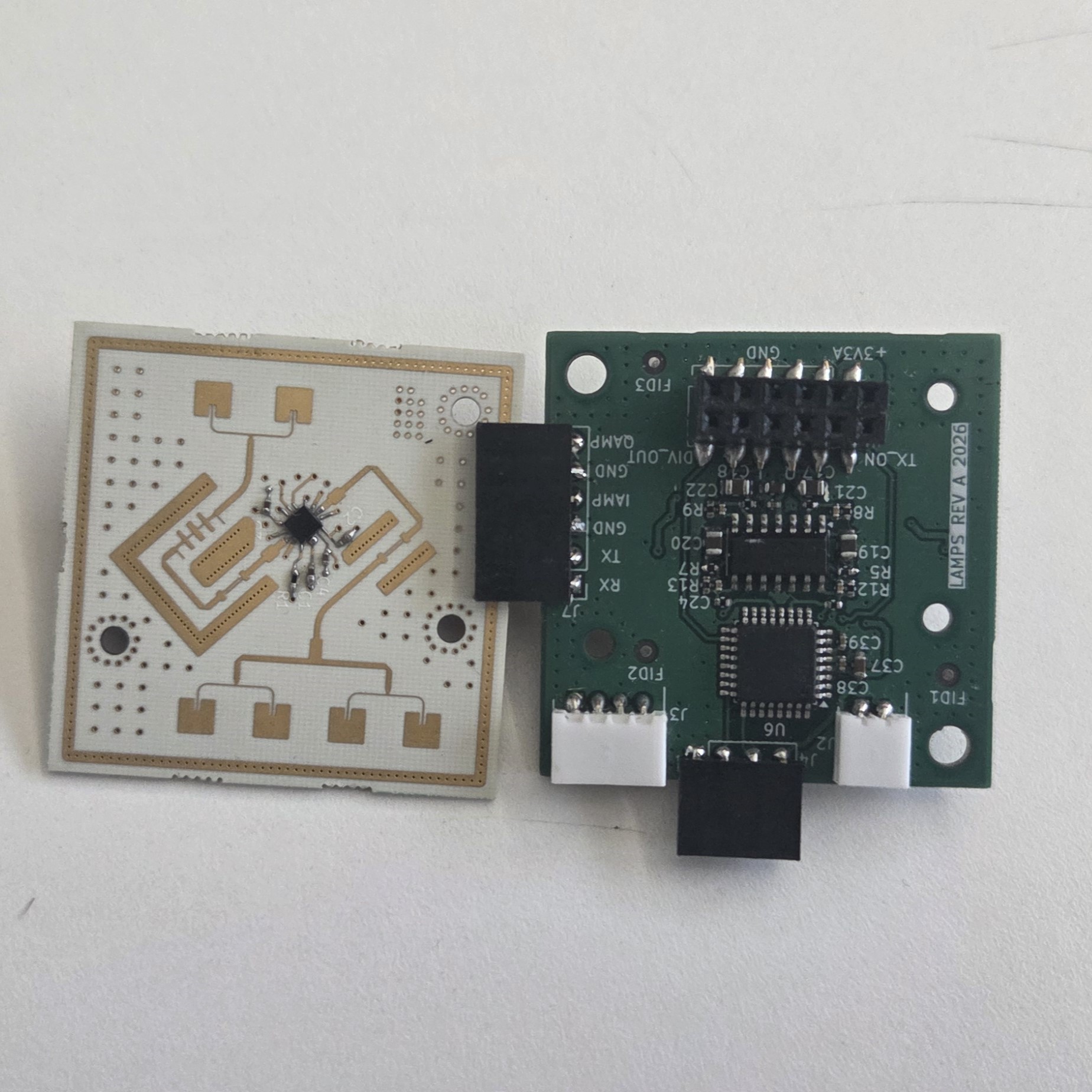

Sparrow 9020 in detail
A closer look at the board — click any photo to enlarge.
